Excellent Software Engineering in KMC

Excellent Software Engineering in KMC


I did not have much respect for ‘Boosted’ C++ programmers in bioinformatics until I went through KMC code. KMC, or rather its latest version KMC2, is currently the fastest (and leanest) kmer counting program. A kmer counting program is conceptually very naive, and that means the faster programs are reflections of programmers’ knowledge about various hardware and data structure concepts. For example, Jellyfish uses compare- and-swap feature of modern processors to make hash table updates near concurrent. BFcounter and a number of other programs use Bloom filter, a data structure concept unrelated to bioinformatics.

KMC, the earlier program, was disk-based and memory-light just like Chikhi et al.’s DSK. However, KMC showed significant speed improvement over DSK by using extensive parallelization in various steps. KMC2 has further improvement over KMC due to its use of minimizer concept. In fact, KMC2 is also an improvement over MSPcounter, another minimizer-based kmer counting program, because it modifies minimizers to ‘signatures’ to avoid too many subreads going to the same bucket.

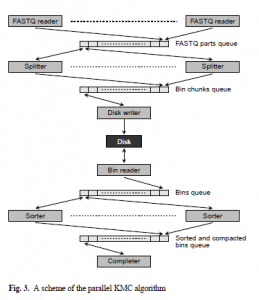

Those algorithmic contributions aside, KMC2 code is a pleasure to read. The code is organized into four subdirectories (kmer_counter, kmc_dump, kmc_dump_sample, kmc_api), among which ‘kmer_counter’ is most important. The following figure from the kmc2 paper displays the flow diagram of the code.

Capture

KMC code is multithreaded and uses a number of queues to handle parallelization. What I found quite amazing is that it completed kmer counting in about the same time another test code written by me barely went through a giant FASTQ file. That means the biggest bottleneck of KMC2 is in reading fastq file from the disk and not in actual processing and counting of kmers. I am working through various classes within the code, and as I proceed, the following blocks will be updated. If you have any further insight, please feel free to let me know in the comment section below.

kmer_counter.cpp: The main code is in kmer_counter.cpp. It defines the class ‘CApplication’ that calls various classes through CKMC class.

kmc.h - defines the CKMC class that parallelizes the code and calls the classes in the files below.

CKMC class is where all action takes place. So, let me describe it in a bit more detail.

i) The public function SetParams(CKMCParams &_Params) sets all parameters.

ii) The public function Process() does all work by synchronizing all threads, etc. This is the most important function in the entire program.

iii) Here is a complete list of all other private and public functions. The names are quite descriptive of what they do.

`template class CKMC {

bool initialized;

CStopWatch w0, heuristic_time , w1, w2;

// Parameters (input and internal)

CKMCParams Params;

// Memory monitor and queues

CKMCQueues Queues;

// Thread groups

vector gr0_1, gr0_2;

vector gr1_1, gr1_2, gr1_3, gr1_4, gr1_5; // thread groups for 1st stage

vector gr2_1, gr2_2, gr2_3; // thread groups for 2nd stage

uint64 n_unique, n_cutoff_min, n_cutoff_max, n_total, n_reads, tmp_size, n_total_super_kmers;

// Threads

vector w_stats_fastqs;

vector*> w_stats_splitters;

vector w_fastqs;

vector*> w_splitters;

CWKmerBinStorer *w_storer;

CWKmerBinReader* w_reader;

vector*> w_sorters;

CWKmerBinCompleter *w_completer;

void SetThreads1Stage();

void SetThreads2Stage(vector& sorted_sizes);

bool AdjustMemoryLimits();

void AdjustMemoryLimitsStage2();

void ShowSettingsStage1();

void ShowSettingsStage2();

public:

CKMC();

~CKMC();

void SetParams(CKMCParams &_Params);

bool Process();

void GetStats(double &time1;, double &time2;, uint64 &_n_unique, uint64 &_n_cutoff_min, uint64 &_n_cutoff_max, uint64 &_n_total, uint64 &_n_reads, uint64 &_tmp_size, uint64& _n_total_super_kmers);`

kmer.h - defines classes Ckmer and CKmerQuake for handling Kmers without and with quality scores.

fastq_reader.h - FASTQ reader classes CFastqReader and CWStatsFastqReader. The second class is a wrapper for the first one created to perform multi-threading.

splitter.h - defines the class CSplitter that splits reads into variuous bins. This is where minimizers are computed.

kb_storer.h - defines the class CKmerBinStorer that stores bins of kmers.

kb_sorter.h - defined the class CKmerBinSorter which sorts kmers within bins.

kb_reader.h - defines the class CKmerBinReader, which reads bins from distribution phase.

kb_completer.h - defines the class CKmerBinCompleter, which complete the sorted bins and store in a file.

kb_collecter.h - defines the class CKmerBinCollector, which collects kmers belonging to a single bin.



Written by M. //
