Designing a Traffic Signal Light - II

Designing a Traffic Signal Light - II


We are going through few interesting papers, each pushing the boundaries on short read alignment in its respective domain - namely CPU, GPU and FPGA. The first one is BWA-mem, published (or rather ‘unpublished’) by Heng Li. Various comparisons suggest that it is the state of the art in CPU-based alignment. Non-believers are encouraged to join the food-fight at seqanswers forum. Second one is Ruibang’s SOAP3-dp published in PLOS One last week. Third paper - “Shepard: A Fast Exact Match Short Read Aligner

  • comes from an Iowa state group and claims to be the best in FPGA-based short read alignment. We like to go into the details of all three algorithms provided you tolerate a bit of childish fun with design of a traffic signal light. The original question was posted in our previous commentary -

Designing a Traffic Signal Light.

-——————–

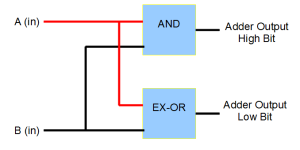

Adding two binary numbers -

write-blog

Circuit -

write-blog2

-———————

Odd number of NOT gates create oscilattor.

write-blog3

-———————

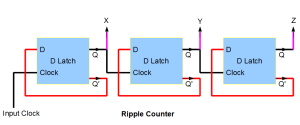

Multiple D-flip flops create ripple counter:

write-blog4

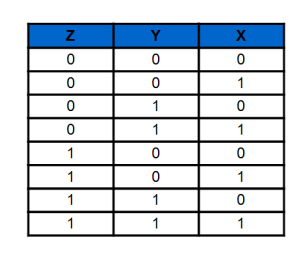

write-blog5

-———————

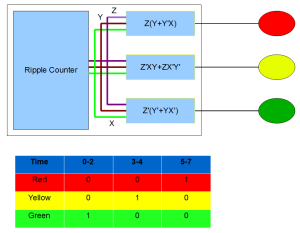

At last, the signal light:

write-blog6



Written by M. //
